Padel Factory "SD"
Models
Models - Take a look at our Courts.

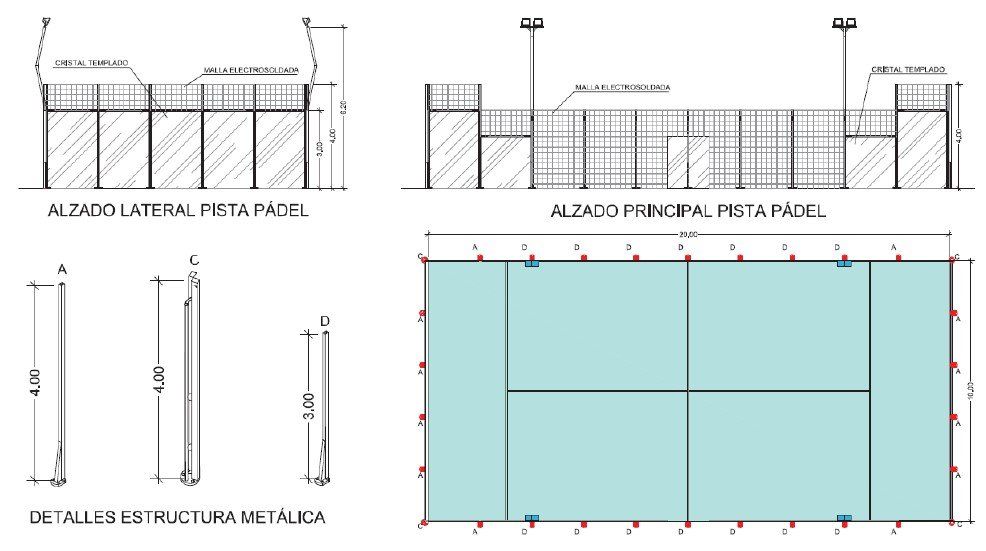

Standard
Maximum dimensions of parts:
4000 x 60 x 60 mm.
Maximum weight of parts:
90,7 kg
GENERAL MATERIAL DESCRIPTION:
Glass 3000x2000x10: Tempered glass 10 mm approved. Glass 2000x2000x10: Tempered glass 10 mm approved.
EN12150 standard.
Poles 80x60x2,5: Carbon steel S-235JR galvanized and hot-dip lacquered.
Lampposts: 4 lampposts for 1 area each one of 200 W 22.500 lumens
Fixing: Steel conforming to 8.8 ZI.
Grass: Artificial grass in fiber of polypropylene of 12 mm of height.
Net of padel: Nylon with tensioner.
Support 60x60x4: Between base plate and pillar of 150 mm of height. Mesh: 50x50x4,8 mm elec- trolytic galvanized and lacquered.
BASE OF COURT:
Create a 15 cm thick concrete foundation of specification HA-25/B/20/I, incorporating wire mesh ME 20x20 of Ø 8 mm, steel B 500 T 6x2,20 JOINS IN 10080 placed on approved dividers, to serve as a base without surface treatment ; place on a compacted gravel ground.
The concrete will be spread along the surface and vibrated to remove any air pockets. The joints in the concrete will be made using mechanical appliances to 1/3 of the total foundation thickness. In accordance with NTE-RSS and EHE.

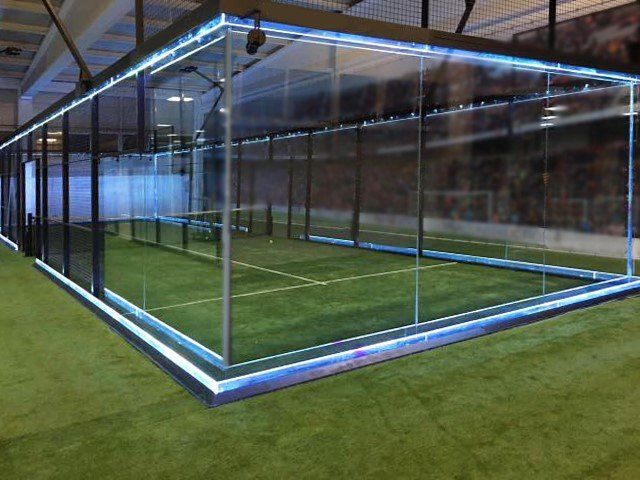

Vision
Maximum dimensions of parts: 4000 x 60 x 60 mm.
Maximum weight of parts: 90,7 kg
GENERAL MATERIAL DESCRIPTION:
Glass 3000x2000x12: Tempered glass 12 mm EN12150.
Glass 2000x2000x12: Tempered glass 12 mm EN12150.
Poles 80x60x4: Carbon steel S-235JR galvanized and lacquered. Lampposts: 4 lampposts at 48º for 2 areas each one of 400w. Fixing: Steel conforming to 8.8 AISI-316.
Grass: Artificial grass in fiber of polypropylene of 12 mm of height.
Net of padel: Nylon with tensile.
Reinforcement: In the lower part between pillar and base plate for 380 mm of height. Angle 80 x 10: At the back walls to give rigidity to the glass.
Hang gliders rear: at the back to give resistance.
Mesh: 50x50x4,8 mm electrolytic galvanized and lacquered.
BASE OF COURT:
Create a 15 cm thick concrete foundation of specification HA-25/B/20/IIa incorporating wire mesh ME 20x20 of Ø 8 mm, steel B 500 T 6x2,20 JOINS IN 10080 placed on approved dividers, to serve as a base without surface treatment; placed on a compacted gravel ground.
The concrete will be spread along the surface and vibrated to remove any air pockets.
The joints in the concrete will be made using mechanical appliances to 1/3 of the total foundation thickness.
In accordance with NTE-RSS and EHE.
PROPOSED CONFIGURATIONS:
| Length (m) | Width (m) | Area (m2) |
|---|---|---|
| 20 | 10 | 200 |
| 20 | 6 | 120 |
| 10 | 6 | 60 |
